10.3Gbps SFP+ 1550nm Transceive Single Mode 40KM for SMF transmission

Name: 103Gbps SFP 1550nm Transceive Single Mode 40KM for SMF transmission
Brand: Fiberroad
Price: 1 USD

Brand Name : Fiberroad

Model Number : FR-SFP-10G-ER

Certification : CE FCC ROHS

Place of Origin : ShenZhen China

MOQ : 10pc

Price : Pls send request details

Payment Terms : T/T, Western Union

Supply Ability : 10000pcs/Month

Delivery Time : 2-3 workdays

Packaging Details : Standard neutral or brand packing

Product Name : Optical Transceiver Module

Data Rate : 10G

Standard : 0 to +70°C

Industrial : -40 to +85°C

Power supply : +3.3V

Bit rates : 10.3Gbps

Wavelength : 1550nm

Distance : 40km

Contact Now

10.3Gbps SFP+ Transceive Single Mode for SMF transmission

The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps
and 40km transmission distance with SMF. The transceiver consists of three sections: a Cooled EML laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions

10.3Gbps SFP+ 1550nm Transceive Single Mode 40KM for SMF transmission

Product Features

* Supports up to 10.3Gbps bit rates
* Hot-pluggable SFP+ footprint
* Un-cooled 1550nm Cooled EML laser and PIN photodiode, Up to 40km for SMF transmission
* Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
* Compatible with RoHS
* Single +3.3V power supply
* Real Time Digital Diagnostic Monitoring
* Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C

Applications
* 10Gbps Optical systems
* 10GBASE-ER at 10.3125Gbps
* 10GBASE-EW at 9.953Gbps
* LTE systems
* Other Optical links

10.3Gbps SFP+ 1550nm Transceive Single Mode 40KM for SMF transmission

Product Tags:

fiber optical transceiver

sfp transceiver module

Buy cheap 10.3Gbps SFP+ 1550nm Transceive Single Mode 40KM for SMF transmission product

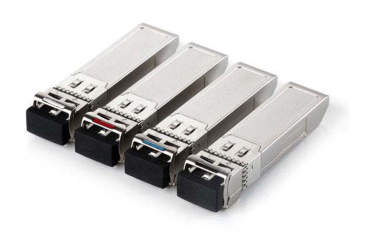

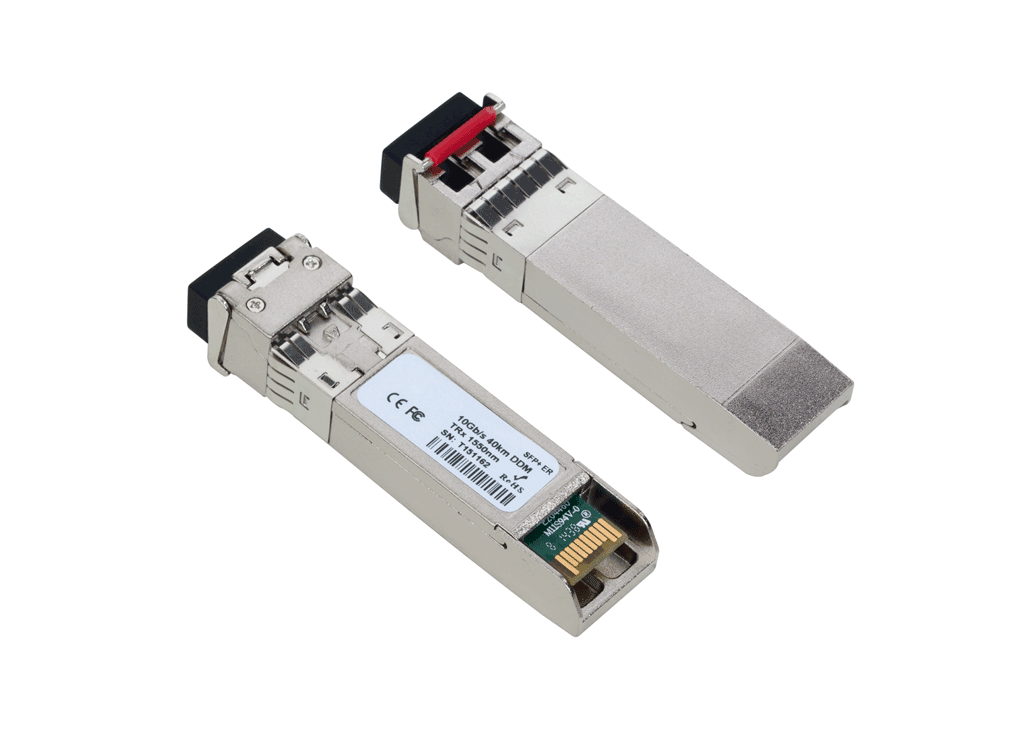

10.3Gbps SFP+ 1550nm Transceive Single Mode 40KM for SMF transmission Images
