4 Port Industrial Media Converter 4x10/100/1 OOO Base-TX + 1x100/1000 Base-FXSFP
Industrial Media Converter Brief introduction
FR-7N3104 is a new generation Industrial Media Converter with 4-Port 10/100/1 OOOBase-TX and 1-Port 100/1000Base-FX Fast SFP that provide stable and reliable Ethernet transmission offered by Fiberroad, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The Industrial Media Converter complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain.
FR-7N3104 can offer redundantmechanismsforcritical applications that need always-on connections. It can also operate either at standard operating temperature range -40to75°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.
Industrial Media Converter Features
> 4x10/100/1 OOOBase-TX, 1x100/1 OOOBase-FX SFP
> Support Auto-MDIX, and full/half duplex self-negotiation mode
> Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission
> Support 10Kbytes giant frame, compatible with various extension protocol
> 4K MAC address table
> Support IEEE802.3az energy efficient Ethernet technology
> Support IPv6 Protocol
> Electric 8KV surge protection, easy to use in outdoor environment
> Complete status indicator, working state at a glance
> Power input polarity protection design, no worry about wrong operation
> Metal case, no fan design
> Installation method: DIN trail /Wall mounting
Gigabit Ethernet Media Converter Parameters
Industrial Media Converter Parameters
| Physical Port |
| RJ45 Port and Speed | 1x10/100/1OOOBase-TX |
| Fiber Port and Speed | 1x100/1OOOBase-FX SFP |
| Parameters |
| Ethernet Standards | IEEE802.3 IEEE802.3u IEEE802.3z IEEE802.3ab IEEE802.3x IEEE802.3az IEEE802.3Qad IEEE802.3ah IEEE802.1X IEEE802.1QIEEE1588 |
| Packet Buffer | 1M |
| Maximum Packet Length | Upto 10K |
| MAC Address Table | 4K |
| Transmission Mode | Store and Forward (full/half duplex mode) |
| Exchange Property | Delay time: < 7ps Backplane bandwidth: 10Gbps; Packet forwarding rate: 7.44Mpps |
| PoE (Optional) |
| PoE Standard | 4x IEEE 802.3af/IEEE 802.3at PoE |
| Power Budget | Max. PoE output power budget 30W |
| LED Indicator |
| Power | Connect-always |
| RJ45 | Link/Act: connect-always; data exchange-twinkle |
| Fiber | Link/Act: connect-always; data exchange-twinkle |
| Power Information |
| Power Access Mode | Phoenix terminal, DC seat |
| Redundant Power Input | DC 9-56V |
| Overload Protection | Yes |
| Power Reverse | Support |
| Power Consumption | Full-load<15W |
| Physical Property |
| Protection Grade | IP40 aluminum case |
| Cooling Mode | Natural cooling, no fan design |
| Dimensions | 120mm x 95mm x 30mm (Lx Wx H) |
| Installation Mode | DIN trail/waIl-mountable |
| Weight | 380g (With PoE : 430g) |
| Working Environment |
| Operating Temperature | -40°C~75°C |
| Operating Humidity | 5%~90% non-condensing |
| Storage Temperature | -40°C~85°C |
| Warranty |
| MTBF | 500,000 hours |
| Defects Liability Period | 3 year warranty, lifetime technical support |
| Certification Standard |
| EMC | FCC Parti 5 Class A CE-EMC/LVD RoHS EN61000-4-2 (ESD), EN61000-4-3 (RS) EN6100044 (EFT), EN6100045 (Surge) EN61000^1-6 (CS), EN61000-4-8 EN61000-4-11 |
| Vibration | IEC60068-2-6 -40~75°C High and Low Temperature Test IP40 Protection Test |

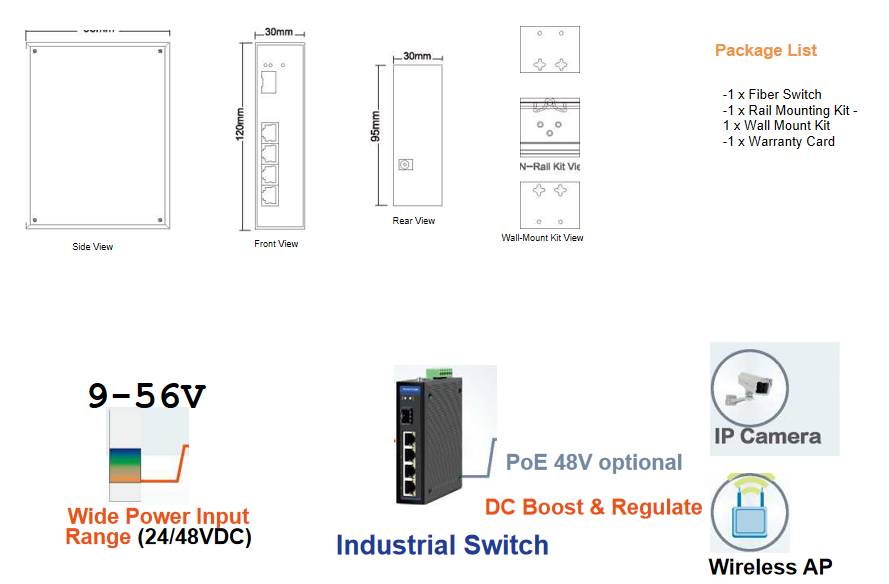

Industrial Media Converter Dimensions
Order information
| Model Number | Port Description |
| FR-7N3101 | Industrial Ethernet Switch, 1 x 10/100/1OOOM Base-TX + 1 x 10/100/1000M Base-FX SFP |
| FR-7N3101 | Industrial Ethernet Switch, 2 x 10/100/1 OOOM Base-TX + 1 x 10/100/1 OOOM Base-FX SFP |
| FR-7N3005 | Industrial Ethernet Switch, 5 x 10/100/1 OOOM Base-TX |
| FR-7N3104 | Industrial Ethernet Switch, 4 x 10/100/1 OOOM Base-TX + 1 x 10/100/1 OOOM Base-FX SFP |
| FR-7N3101P | Industrial Ethernet Switch, 1 x 10/100/1 OOOM Base-TX + 1 x 10/100/1 OOOM Base-FX SFP/ 1xPoE |
| FR-7N3102P | Industrial Ethernet Switch, 2 x 10/100/1 OOOM Base-TX + 1 x 10/100/1 OOOM Base-FX SFP/ 2xPoE |
| FR-7N3005P | Industrial Ethernet Switch, 5x 10/100/1 OOOM Base-TX/5xPoE |
| FR-7N3104P | Industrial Ethernet Switch, 4 x 10/100/1 OOOM Base-TX + 1 x 10/100/1 OOOM Base-FX SFP/4xPoE |
